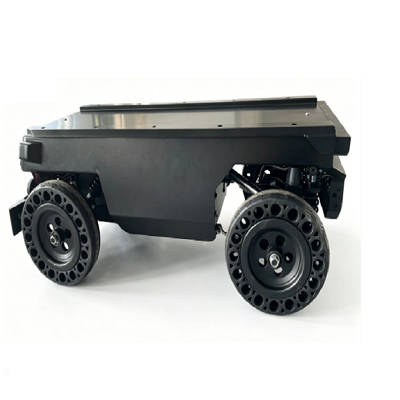

Ackermann Wheeled Robot Chassis

Bayanin Samfura

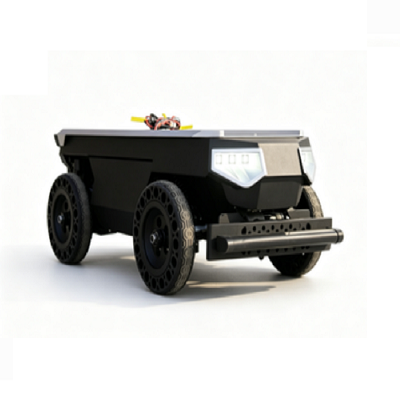

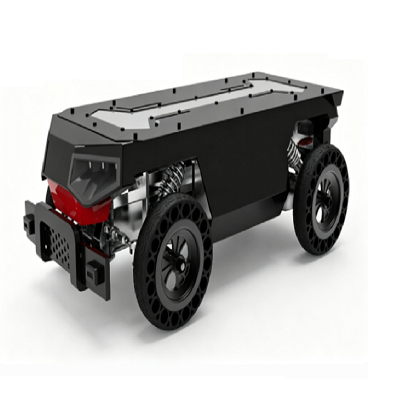

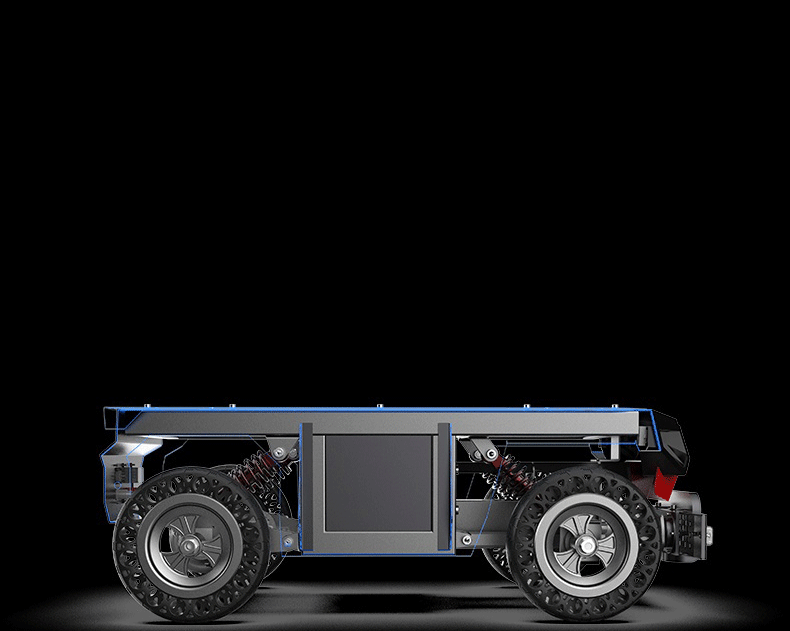

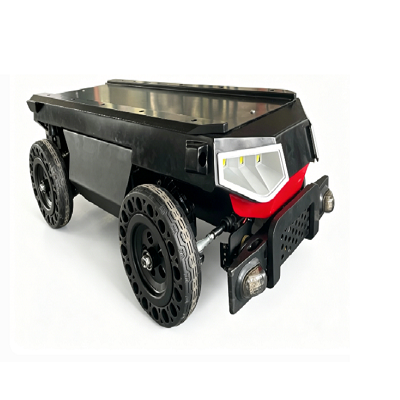

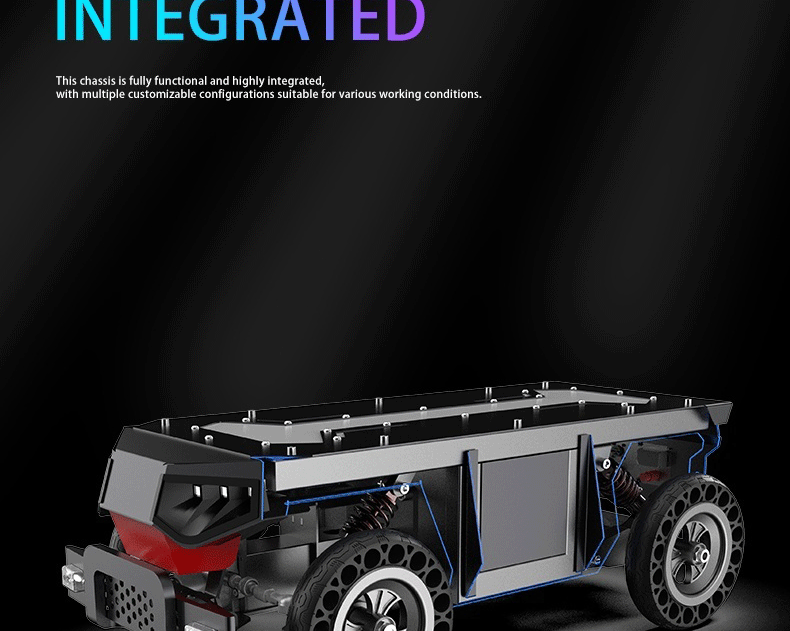

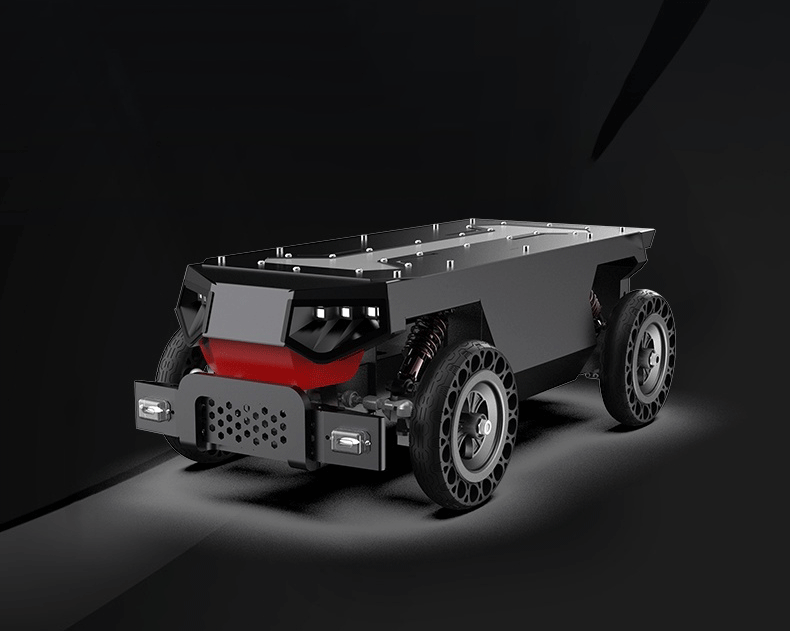

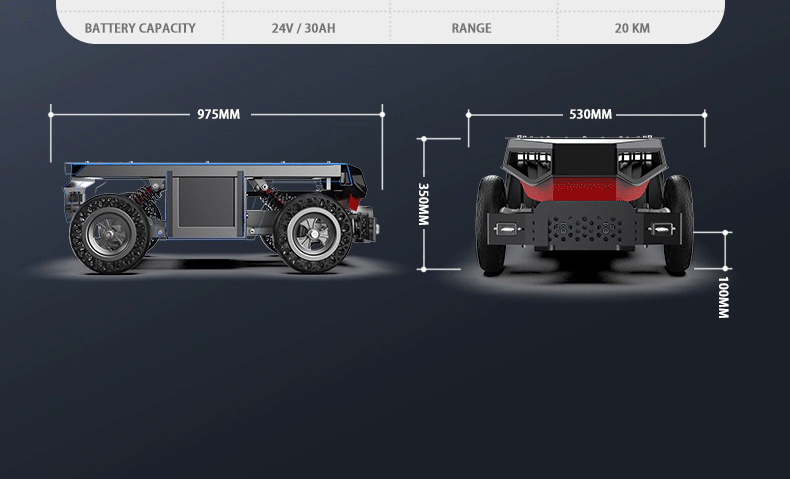

WD-W3-2200S Ackermann Wheeled Robot Chassis babban haɗe-haɗe ne na UGV na wayar hannu na duniya wanda aka ƙera don mutum-mutumi masu cin gashin kansa. Yana ɗaukar babban tsarin tuƙi na Ackermann wanda ya dace da tsarin tukin tuƙi mai wuyar gaske na baya, daidaita aikin tutiya mai ƙarfi da gogayya mai ƙarfi.

Babban Tsarin Tsarin & Fa'idodin Fasaha

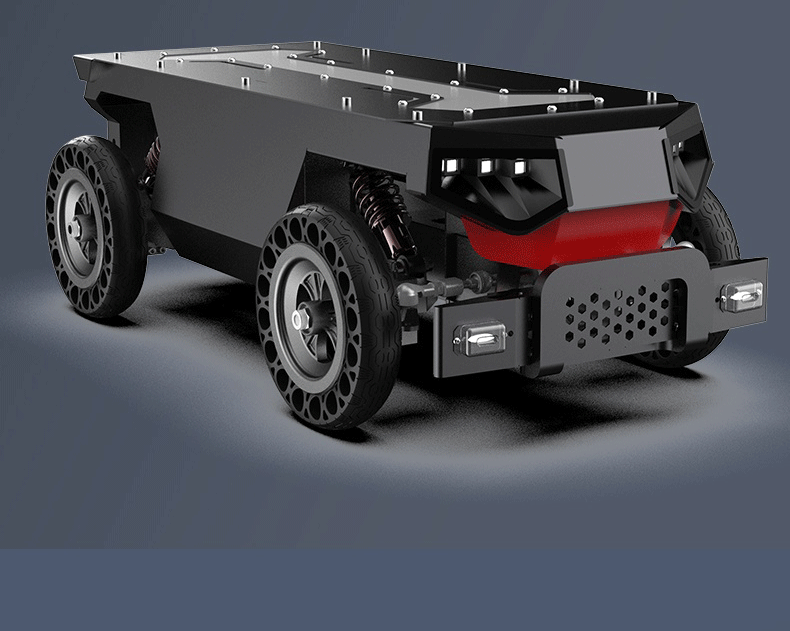

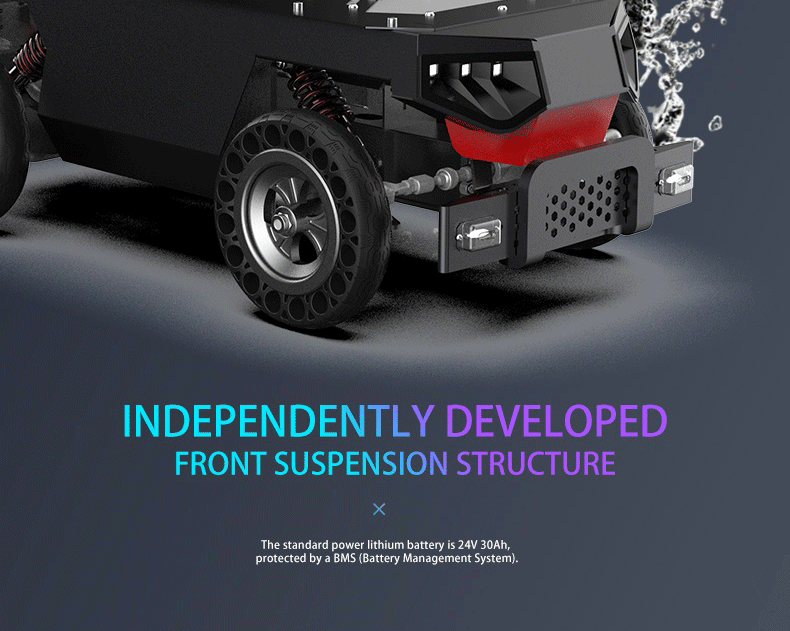

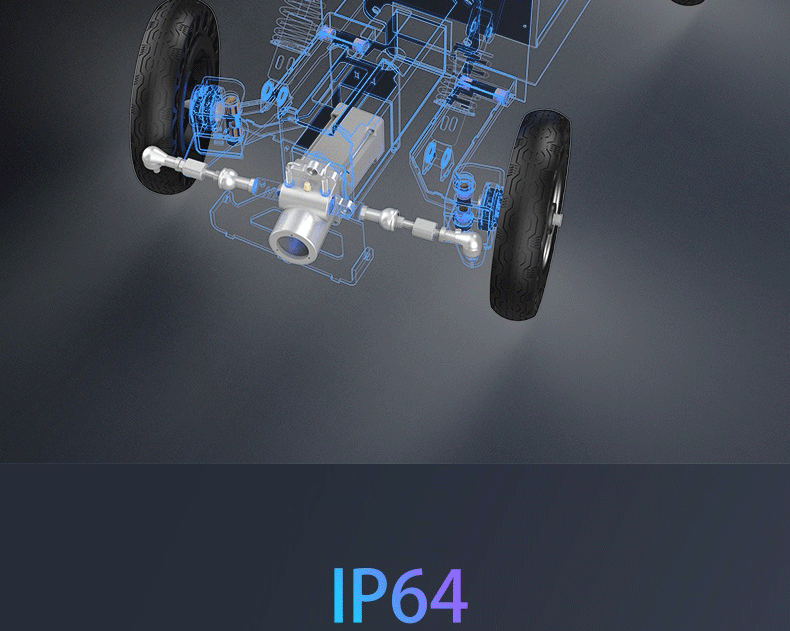

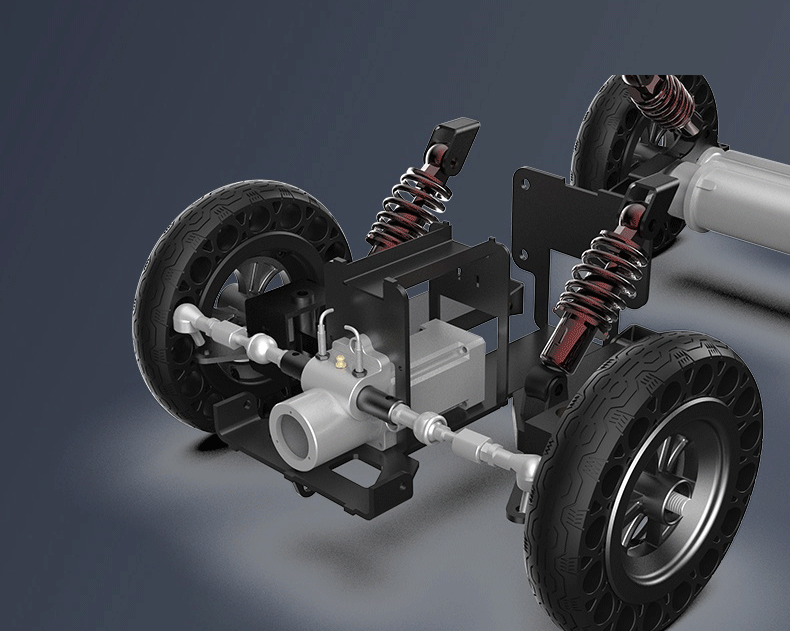

1.Unique Front Ackermann Suspension System

Haɓaka da kan mu na gaba mai ninki biyu na dakatarwar ma'auni na ma'auni yana ɗaukar ragi mai sauƙi guda ɗaya, ƙaramin tsari na ciki, haɓaka kwanciyar hankali na abin hawa da zirga-zirgar ƙasa. Gine-ginen dampers guda huɗu (2 gaba + 2 na baya) suna ɗaukar rawar jiki yadda yakamata akan manyan hanyoyi.

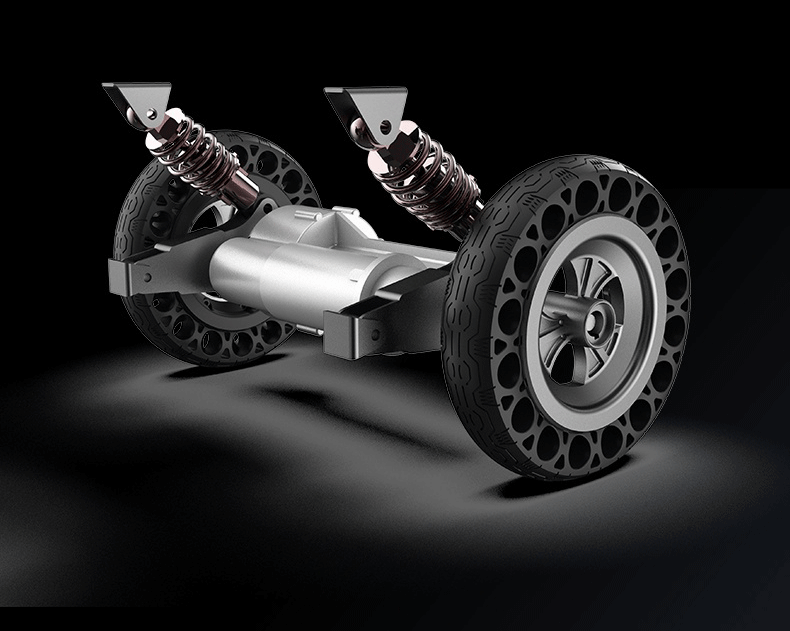

2.Reliable Rear Bambancin Drive Power System

Babban gada mai ƙarfi ta baya tare da rabon ragi na 1:20, wanda ya dace da injin 24V 300W ba tare da goga ba tare da ingantaccen encoder. Direban mai goyan bayan yana tanadi cikakkun mu'amalar sadarwa don haɓaka sakandare, dacewa don sarrafa kewayawar kwamfuta ta sama.

3.Complete Safety Power & Braking System

Daidaitaccen baturin wutar lantarki na 24V 30Ah ginannen tsarin kariyar BMS mai hankali don hana wuce gona da iri, zubar da ruwa da gajeriyar kewayawa. Tsarin birki shine birkin diski na gaba + birki na baya, yana goyan bayan birkin tuki da birki na inji don tabbatar da aminci yayin aiki da rufewa.

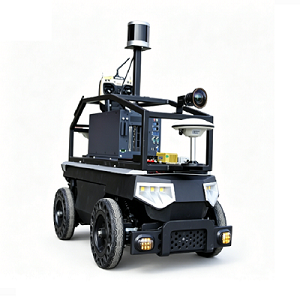

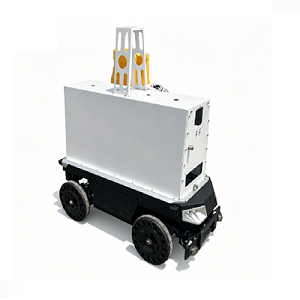

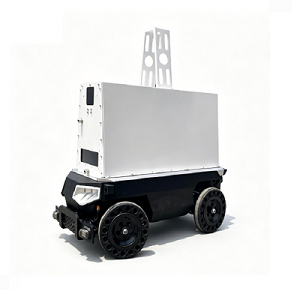

Yanayin aikace-aikace

1.Industrial & Outdoor Inspection Robots: Park sintiri, factory aminci dubawa, bututu dubawa

2.Reconnaissance & Exploration Robots: Sa ido kan muhalli, binciken ƙasa, binciken filin

3.Education & Scientific Research Platform: Jami'ar mutum-mutumi dakin gwaje-gwaje, koyar da tuki mai cin gashin kansa, benci gwajin bincike na algorithm
