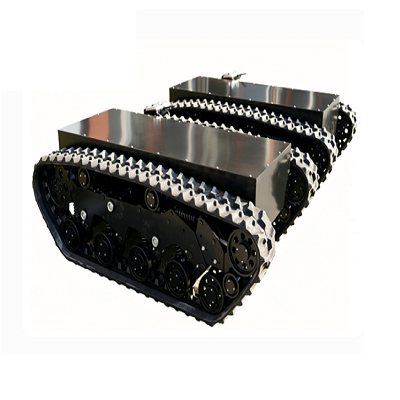

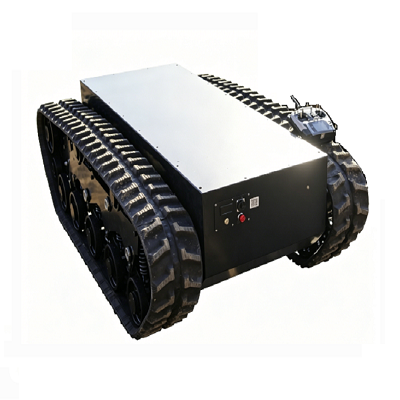

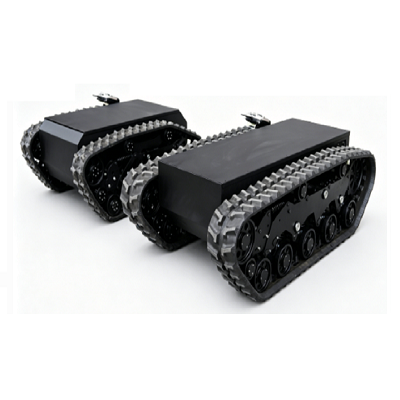

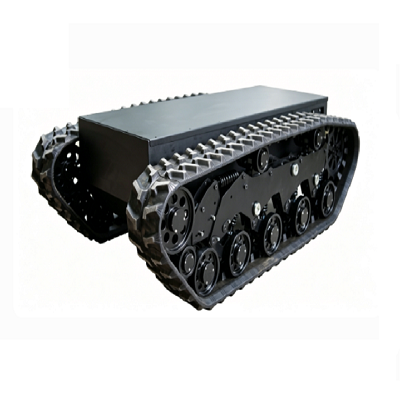

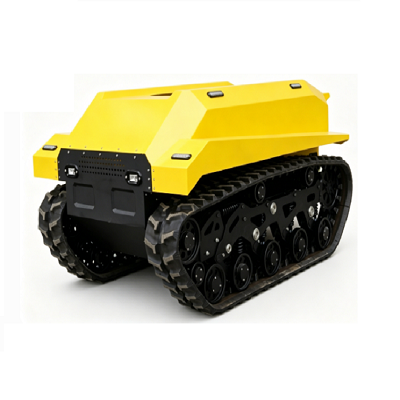

Babban Duty Crawler Track Robot Chassis

WD-K6G Samfuran Samfura

Girman ƙira (mm): 1670*1020*540

Nauyin Chassis: 392KG

Gudun gudu: 0-4.7km/h

Tsawon share ƙasa: 180mm

Matsayin kariya: IP54/64

Matsakaicin tsayi: 300mm

Matsakaicin iya aiki: 400KG

Matsakaicin hawa: 15 ° (4.7km/h cikakken kaya)/30 ° (1.5km/h cikakken kaya)

Tsawon tsayi: 220mm

Mahimman Bayanan Siyarwa

1.Dual-speed graded hawa zane don duk-ƙasa karbuwa. A ƙarƙashin cikakken kaya, yana hawan 15 ° gangara a 4.7km / h don saurin canja wuri, kuma yana cin nasara ga gangaren 30 ° a ƙananan gudu 1.5km / h. 180mm izinin ƙasa ya gane 300mm a kwance & 220mm madaidaiciyar shingen shinge don wuraren gine-gine.

2.0-4.7km/h stepless daidaitacce gudun ma'auni azumi nauyi-load sufuri da low-gudun daidai dubawa.

3.Optional IP54 / IP64 dustproof & waterproof rating. Matte black roba-fesa gami jiki yana tsayayya da lalata, dace da duk yanayin ruwan sama, ƙura da wuraren masana'antu mai ɗanɗano.

Robots Na Farko

1. Nau'in-taƙawa masana'antu na'urar dubawa robot:

Ɗauki manyan kayan gano lahani na NDT da babban ma'anar PTZ don gada, tsarin ƙarfe da kuma duba saman tanki.

2. Mutum-mutumi na binciken ƙasa:

Ƙarfe-ƙarfe waƙoƙi suna dacewa da gangaren tsakuwa na ma'adanan, sanye take da rawar gani da radar gano ma'adinai don binciken ma'adinai mai nisa.

3.Large masana'antu Park tsaro sintiri robot:

An sanye shi da mai ɗaukar hoto mai zafi na ruwan tabarau da yawa da lidar don yin sintiri na dogon lokaci a tashar jiragen ruwa, ma'adinai da manyan masana'antu.

FAQ

1.Q: Menene matsakaicin nauyin WD-K6G mai nauyi mai nauyi?

A: The chassis nauyi 392KG ciki har da 48V150 baturi, max rated load kai 400KG, dace da kowane irin nauyi masana'antu kayan aiki.

A: Yana iya hawa 15 ° a cikakken gudun 4.7km / h, da kuma hawa m 30 ° a low gudun 1.5km / h ga hadaddun dutse gangara.

3.Q: Zan iya haɓaka matakin hana ruwa daga IP54 zuwa IP64?

A: Ee, muna goyan bayan keɓance IP64 cikakken haɓakar hana ruwa don humid, fantsama da yanayin aiki na wuta.

Matakan kariya

Dokar hawan 1.Climbing: Canja zuwa ƙananan gudun 1.5km / h kafin hawan 30 ° gangara mai zurfi, kada ku yi amfani da babban gudun 4.7km / h don kauce wa lalacewar watsawa.

2.Load iyaka: Kada ku ci gaba da aiki a kan nauyin 400KG max na dogon lokaci; overloading zai haifar da dindindin nakasawa na dakatarwa da firam.

3.Track kariyar: Ƙaƙƙarfan sandunan ƙarfe da tsakuwa mai wuya na iya tayar da waƙoƙin ƙarfafa ƙarfe, ana ba da shawarar faranti na waƙa don yanayin aiki na mine.

4.Wading umarni: Standard IP54 kawai tsayayya da splashing ruwa, dogon lokaci nutsewa haramta. Sigar IP64 tana goyan bayan gajeriyar wading, zurfin ruwa ba zai iya wuce cibiyar dabaran tuƙi ba.

5.Tsarin jiki: Tsabtace matte alloy gidaje kawai tare da tsaka-tsaki mai tsaka tsaki da ruwa mai tsabta, mai karfi acid ko alkali mai tsabta an haramta shi don hana lalata.
