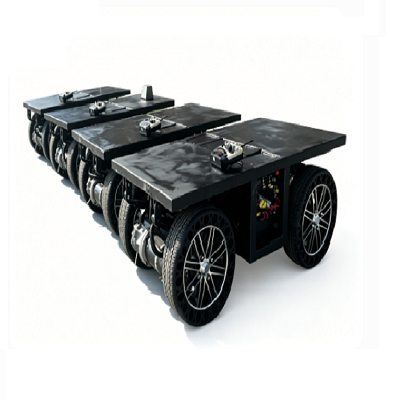

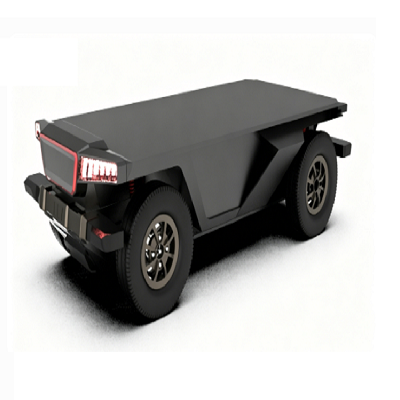

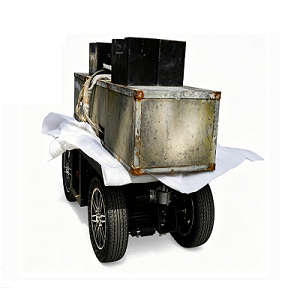

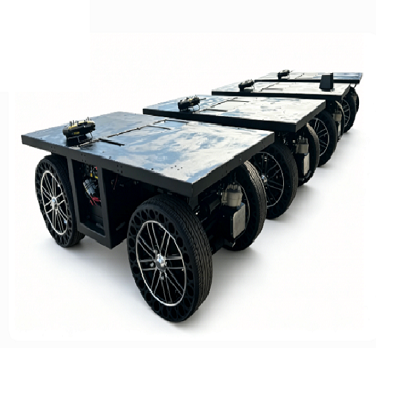

Electric Ackermann Wheeled Chassis

Bayanin Samfura

WD-W3-2200H Electric Ackermann Wheeled Chassis wani dandali ne na abin hawa mara matuki na lantarki wanda aka ƙera don matsakaicin nauyi a waje yanayin aiki. Yana amfani da balagagge na gaba Ackermann tsarin tuƙi mai ƙafafu huɗu wanda aka haɗa tare da na'ura mai wuyar gaske na baya, yana haɗa aikin tuƙi mai sassauƙa da ƙarfin nauyi mai ƙarfi don daidaitawa zuwa hadaddun mahalli na waje.

Ma'aunin Fasaha

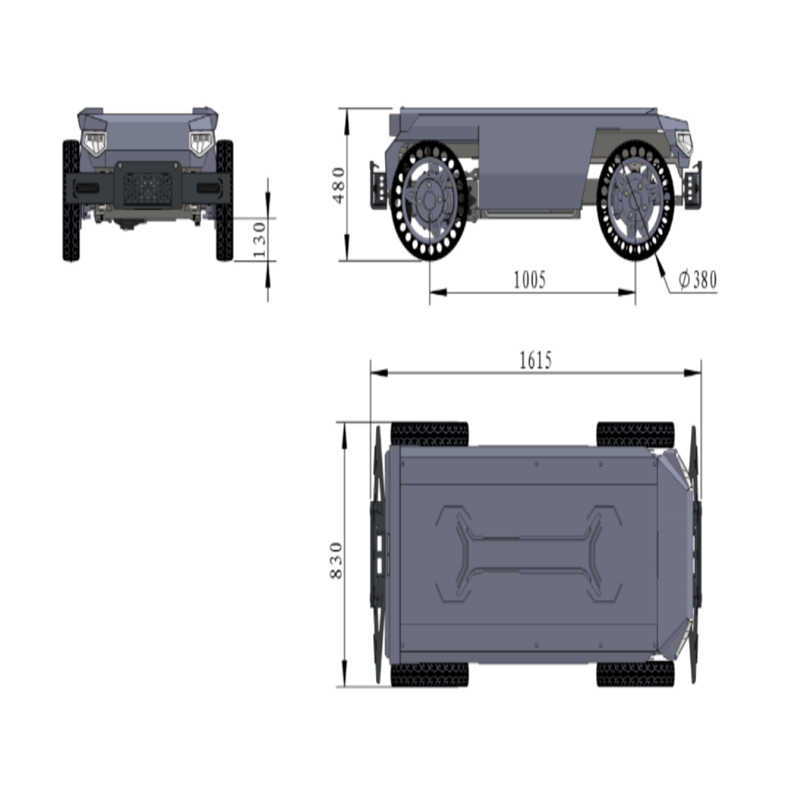

Girman Tsarin Gabaɗaya: 1615*830*480mm

Girman Gidan da Ba komai a ciki: 1250*435*100mm

Chassis Nauyin Kai: 160kg

Nauyin ƙira mai ƙima: 300kg

Gudu Gudu: 0-21km/h

Juya Radius: 2.5m

Tsawon ƙasa: 130mm

Matsayin kariya: IP54

Matsakaicin kusurwar hawa: 10°

Matsakaicin Tsayin Matsala Tsayi: 120mm

FAQ

Q1: Shin wannan lantarki Ackermann chassis zai iya tallafawa ci gaban sakandare?

A: iya. Direban da ba shi da goga ya tanadi cikakkun mu'amalar sadarwa ta CAN/RS485, masu dacewa da ROS, kwamfutocin masana'antu da tsarin sarrafa kewayawa na yau da kullun.

A: IP54 kariya sa, resistant zuwa ƙura da splashing ruwa; wanda ya dace da sintiri na yau da kullun na waje, ba don nutsewar ruwa na dogon lokaci ba.

Q3: Shin chassis na lantarki yana da birki na ajiye motoci don filin ajiye motoci?

A: An sanye shi da tsarin birki na baya na gaba tare da birki mai zaman kansa na inji, yana hana zamewa a kan gangara ƙarƙashin cikakken nauyin 300kg.
